Description

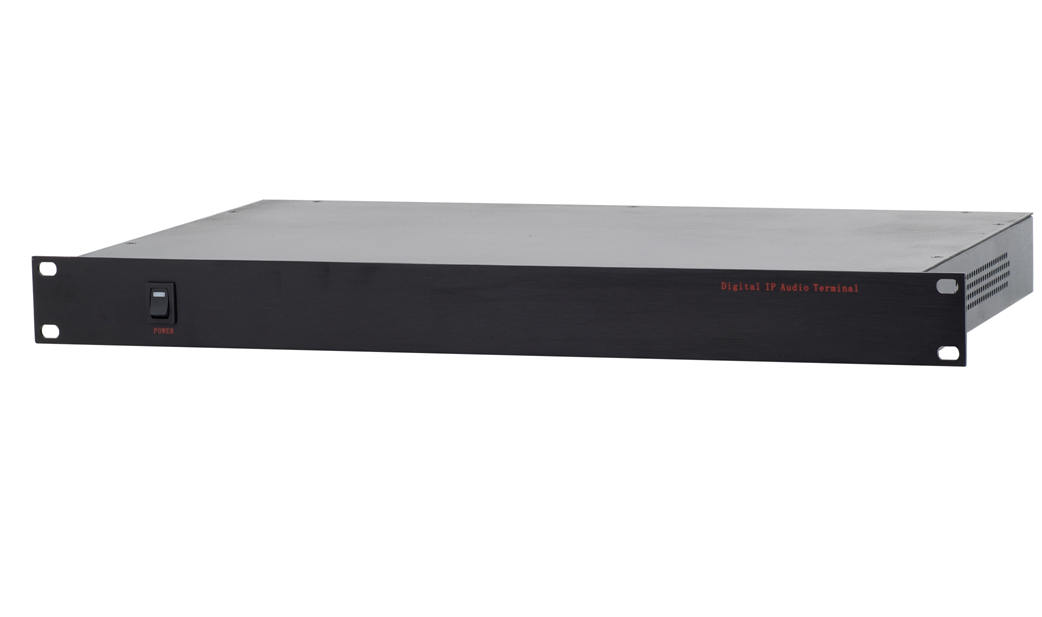

IP-8000NA IP Public Address System Network Audio Adapter
CMX Audio thiết bị âm thanh hội thảo, âm thanh phòng họp, âm thanh công cộng, âm thanh thông báo, âm thanh IP
Feature
- The IP network audio adapter with decoder is the head of IP PA system.
- The IP network audio adapter with decoder can work with universal PA 100 volt amplifier and speakers.
- It is high capacity but cost-effective multiple room network sound system.
- The system could be set up over existing network, non dedicated network is needed.
- System capacity of 300 adapters online simultaneously.
- Capacity of control power amplifier 1000W.
- Support LAN/WAN and Internet network.
- Network data delay of less than 100 milliseconds.
- Program controllable power supply of AC 230V or 110V.
Specification
Model |
IP-8000NA |
Description |
IP Network Audio Adapter |
Communication Protocol |
TCP, UDP, ARP, ICMP, IGMP |
Audio Format |
Mp2, Mp3, PCM, ADPCM |
Sampling Rate |
8KHz-44.1KHz, 16 bits, 8K-320Kbps |
Transmission Speed |
10/100Mbps |
Frequency Response |
20Hz-20KHz |
Data Delay |
100 milliseconds |
S/N Ratio |
≥90dB |
Connector |
One aux input, one aux output, eight zone contact outputs, one RJ45 input, one 100V power input, 8 zone 100V speaker outputs, one programmable power socket |
Power Consumption |
5W |
Weight |
3.2kg |
Power Supply |
AC230V or 110V |
Dimensions |
483×256×44mm |

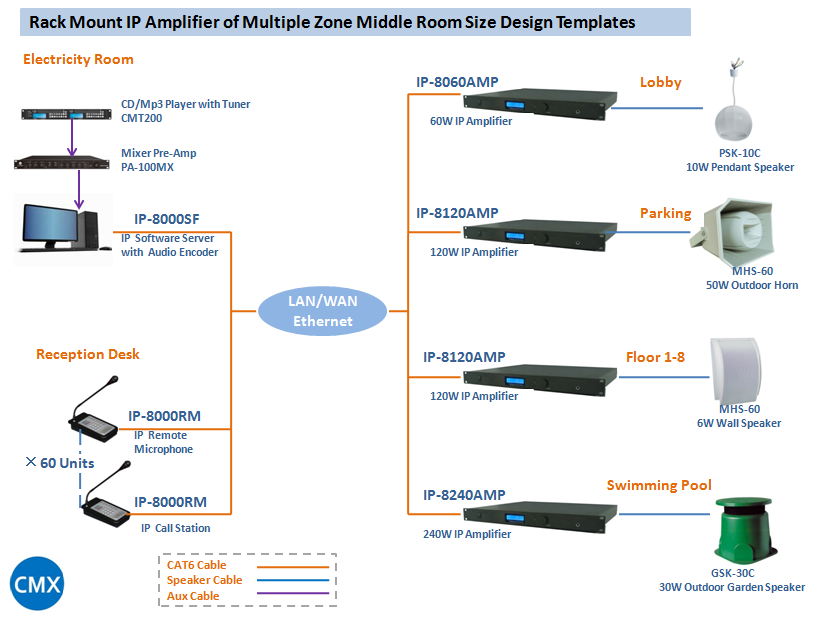

Solution
